Norseman | SKU:
DB-35491
New arrival
10PC SET LEFT HAND SCREW MACHINE DRILLS / SQUARE STYLE EXTRACTORS
10PC SET LEFT HAND SCREW MACHINE DRILLS / SQUARE STYLE EXTRACTORS is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Orders are processed within 1–2 business days after quote approval. We offer multiple shipping options, including freight for larger items. Shipping times vary based on the selected method. You can easily track your order anytime on our Track Your Order page.
Description
Description
Norseman 10-Piece Left-Hand Drill & Square Extractor Set (#DB-35491)
The Norseman DB-35491 10-Piece Extraction Set is designed for vehicle up-fitters, fleet maintenance shops, and municipal service centers dealing with broken bolts, studs, and sheared fasteners. Made in the USA from premium high-speed steel, this kit combines left-hand spiral drill bits with square extractors to remove damaged hardware without ruining threaded holes.
Key Features & Specifications
-
Left-Hand Drill Bits: Cut in reverse (5 sizes: 1/8", 3/16", 1/4", 5/16", 3/8"). The reverse rotation often backs out loose, rusted studs during the drilling process before an extractor is even needed.
-
Non-Expanding Square Extractors: Includes 5 square extractors (sizes E1 through E5). The square design bites into the metal without wedging or expanding the broken bolt outward against the threads.
-
135-Degree Split Point: Prevents bit walking on hardened steel surfaces for accurate, self-centering starts.
-
Screw Machine Length: Compact, stubby drill bits provide the clearance needed to work in tight engine bays, cramped chassis spaces, and restricted frame-rail areas.

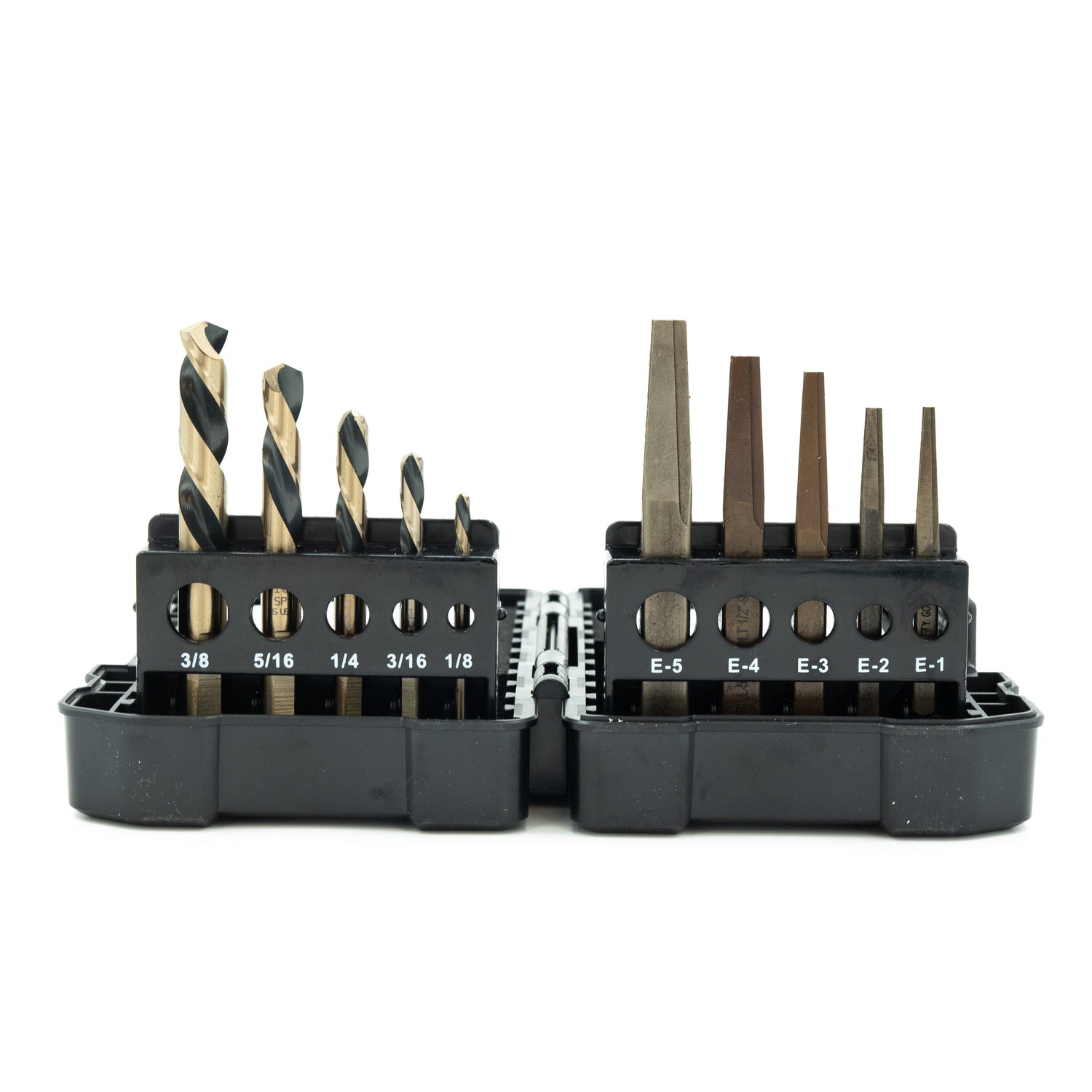

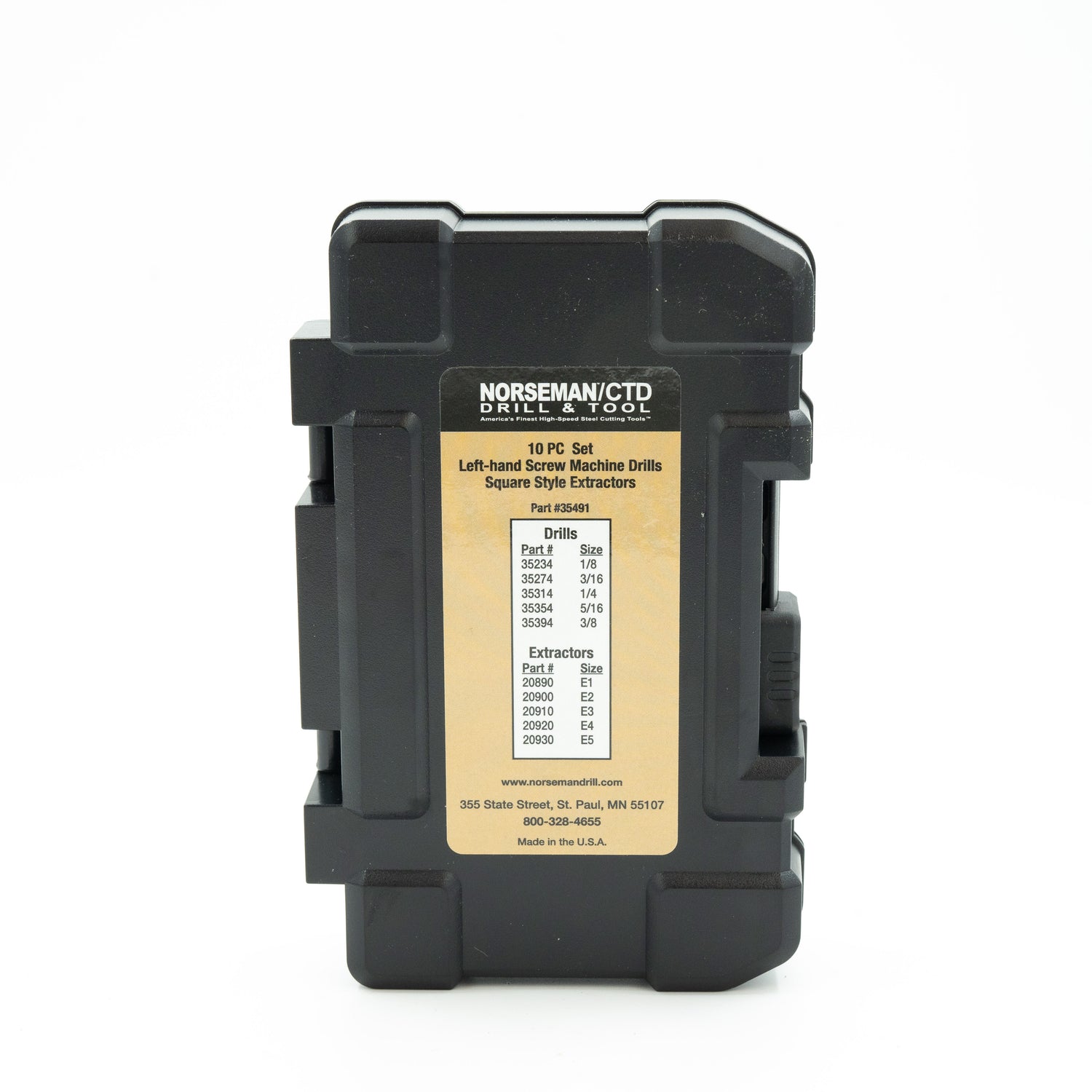

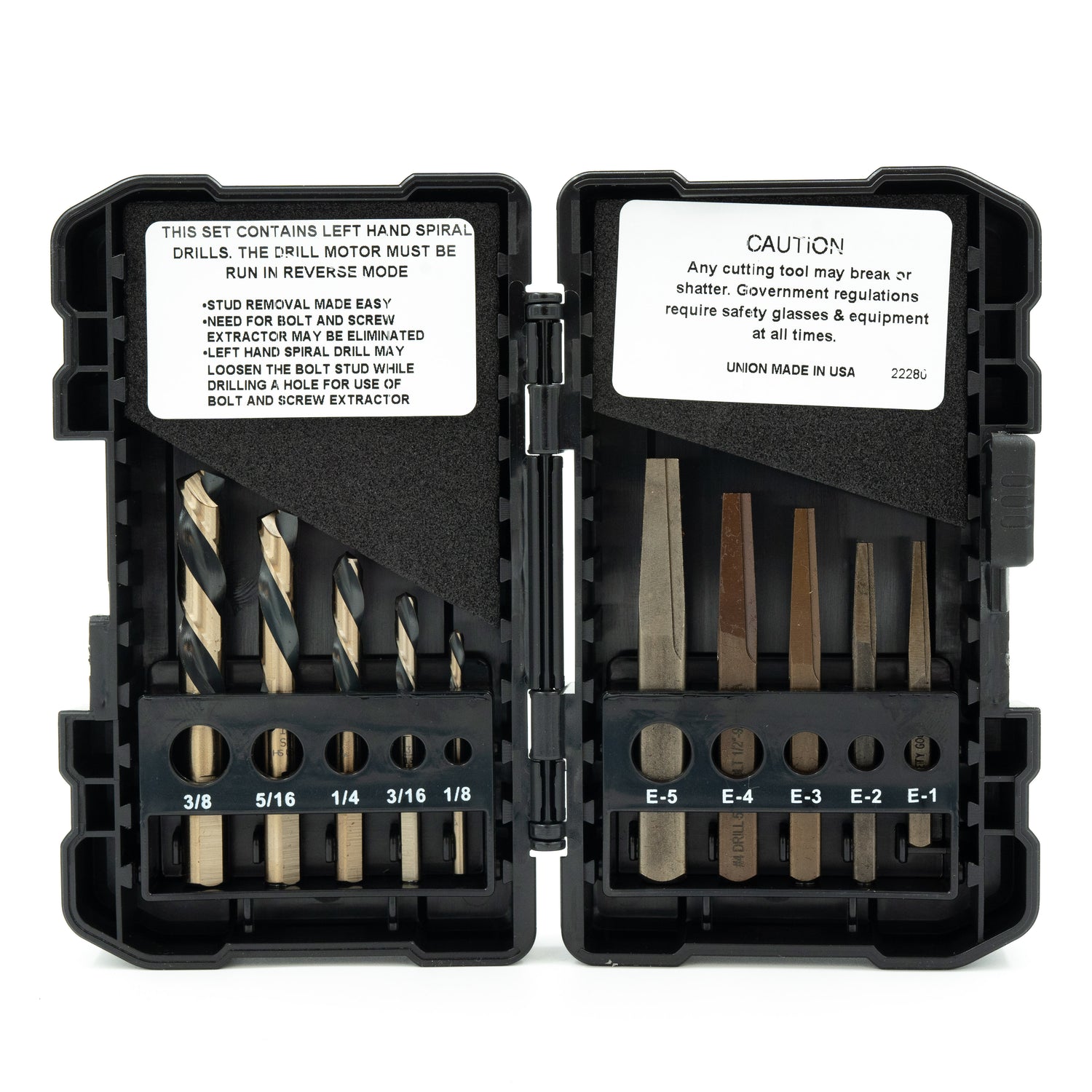

Set Contents (Part #DB-35491)
| Tool Type | Sizes Included |
| Left-Hand Drill Bits (5 Pc) | 1/8", 3/16", 1/4", 5/16", 3/8" |
| Square Style Extractors (5 Pc) | #1, #2, #3, #4, #5 |
Targeted Applications
-
Vehicle Up-Fitting: Removing sheared mounting bolts from utility beds, liftgates, and custom brackets.
-
Truck Fleets & Commercial Transport: Servicing seized frame, suspension, and engine components.
-
Municipal & Public Works: Maintenance and repair work on utility and transport trucks.
-
Emergency Vehicles: Servicing police cruisers, fire apparatus, and EMS units.
Note: Use drill motors in reverse gear for both left-hand drilling and extraction. Drill to a minimum depth of 1/2" before driving in a square extractor.
